PCRMax, Alpha cycler 4 chassis with four 96 well blocks
Technical Specifications PCRMax Alpha cycler 4
KEY FEATURES PCRMax Alpha cycler 4
• Android interface – A large 10 inch colour touchscreen interface powered by a Quad core processor provides a fast, clear and intuitive user experience
• Robust build and reliable system, made with a steel chassis and durable top moulding
• Compact- Save valuable benchspace by condensing four truly independent blocks into one chassis with no connectivity or network issues
• Program Wizard- Generate a protocol specific to your template length, sequence and amplicon size in seconds
• Gradient- Simplified temperature optimization
• Quiet operation – Low fan noise even when all four blocks are in operation
• Format flexibility- The AC-4 is available with any combination of 96 or 384 well blocks
• USB connectivity- For easy transfer of protocols between instruments and retrieval of system information
• Reports- Following completion of a run, a comprehensive report of state and run conditions is generated
• Active Sample Cooling- Minimise non-specific amplification and achieve sharper amplification
• 2 Year manufacturer warranty as standard
• Free software upgrades for the life of the system
TECHNICAL SPECIFICATION
Unit : AC-4
Format : Quad block
Block Options : 96 or 384 well format
Maximum heating rate : 3.4°C per second
Block temperature range : 10°C to 100°C (4°C final hold)
Block uniformity at 55°C : ± 0.3°C
Temperature accuracy at 55°C: : ± 0.25°C
Gradient : Yes (on all formats)
Maximum Gradient : 29°C
Minimum Gradient : 1°C
Maximum number of programs stored : 1000
Maximum fan noise : 50dB single block running, 55-58db four blocks running
Peltier element type : 6
Adjustable heated lid temperature : 35°C to 115°C or off
Heated lid pressure : Adjustable
Software platform : Android
Program interface : 10” inch 1080p HD
Data transfer : USB port
Auto re-start on power failure : Yes
Dimensions (L x W x H) in mm 700 x 535 x 200
Weight : 45kg
Voltage : 100-230, 50-60Hz
Power : 450W
Electricity (standard 30 cycle program) 0.3 kWh

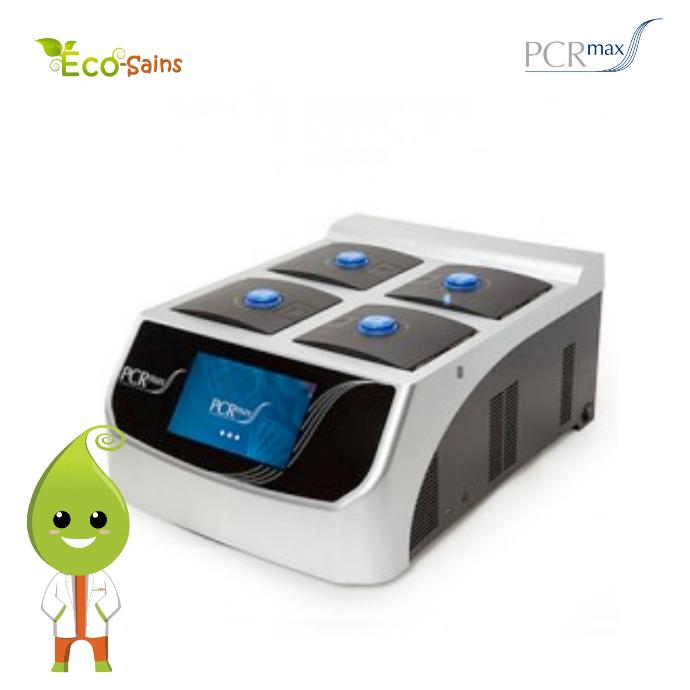

Alpha Cycler 4 with four 96 well blocks
